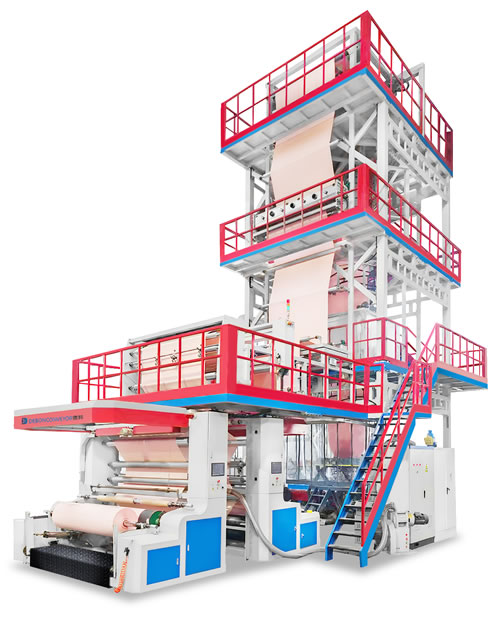

Model: DB-65x2、75x1/1800、75x2、90x1/2300
Main Technical Parameters :
|
Model
|
DB-65x2、75x1/1800
|
DB-75x2、90x1/2300
|
|
Suitable material
|
|
LDPE/LLDPE/MLDPE
|
|
Film width
|
500-2100mm
|
500-2100mm
|
Film thickness
|
0.02-0.15
|
0.02-0.15
|
Max.extrusion output
|
100-300kg/h
|
100-450kg/h
|
|
Extruder
|
|
|
Screw diameter
|
Ф65/75/65
|
Ф75/90/75
|
Screw Vd length
|
32:1
|
32:1
|
Screw material
|
38CrMoAl + alloy
|
38CrMoAl + alloy
|
Cylinder material
|
38CrMoAL
|
38CrMoAL
|
Cylinder cooling
|
370wx 4/5
|
370wx 4/5
|
Driving motor
|
37kwx2/45kwx1
|
45kwx2/75kwx1
|
Temperature control
|
3/4
|
4/5
|
Average power-consume
|
120kw
|
180kw
|
Type of die
|
|
|
Die size
|
IBCФ350-Ф400mn
|
IBCФ400-Ф450mn
|
Temperature control
|
5
|
5
|
Air ring
|
1
|
1
|
Air blower
|
Main fan 18.5kw,IBC In and out ventilation5.5kw×2
|
Main fan 22kw,IBC In and out ventilation7.5kw×2
|
Take-upunit
|
|
|
Roller width
|
1800mm
|
2300mm
|
Effective width
|
1600mm
|
2100mm
|
Take-up speed
|
10-80m/min
|
10-80m/min
|
Take-up motor
|
2.2kw
|
3kw
|
Winding unit
|
|
|
Fully automatic surface friction
|
SURFACE FRICTION TYPE FRICCIONDESUPERFICIE
|
Winding motor
|
2.2kw
|
3kw
|
Winding speed
|
10-80m/min
|
10-80m/min
|
Overall dimension(Lx Wx H)
|
7500x5500x9500mm
|
8000×6500x10500mm
|
